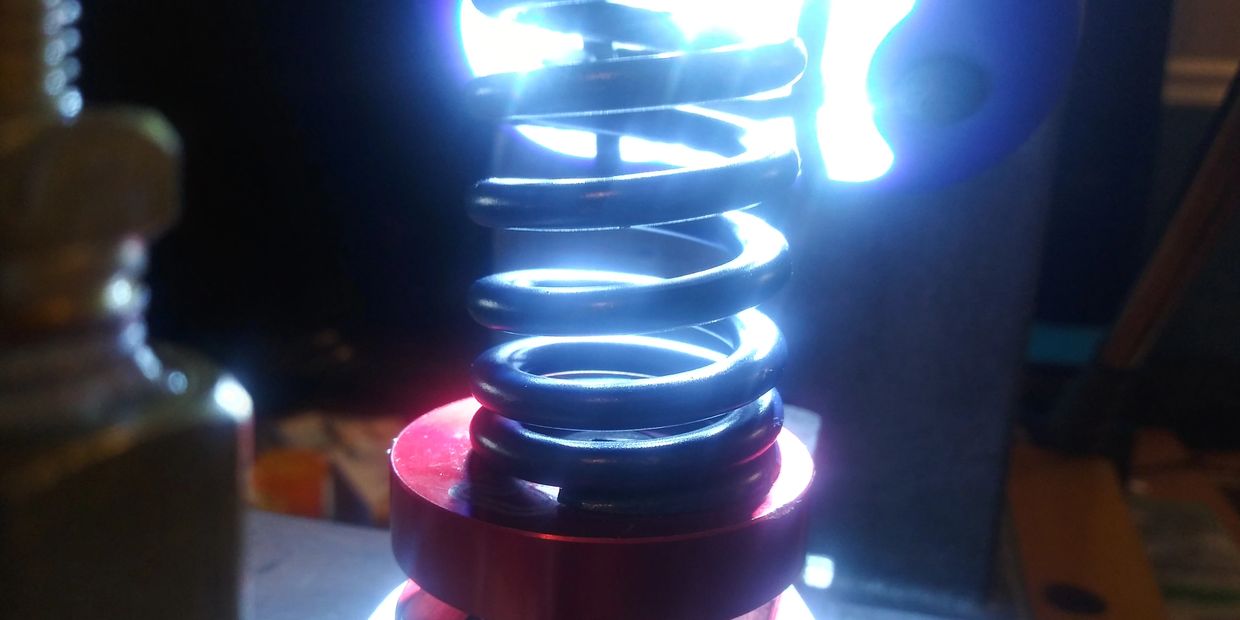

SCCS Beehive "Drop In" Valve Springs for Vortec Heads

Diabolical Racing Vortec Valve Spring PKG

DR Vortec Beehive Valve Spring Specifications:

Free Length: 2.100"

Material: SSCS

Fitment: 062/096 Casting Vortec Heads/GEN 1 Aftermarket Heads with 1.250" Spring Pockets

Head Machining Required: No

Coil Type: Ovate

Coils per spring: 7

Installed Height @ 1.800"  90lbs

Open Load @ .500" 283lbs

Max Lift .550"

Max rpm 7000* (with 1.94/1.50) valves. *Higher RPM available upon request.


Drop In Package includes: (16) Load matched DR drop-in beehive valve color coated springs (8)  intakes, (8) exhausts, (16) CCA 787-16 hardened steel retainers, (32) precision Hardened valve locks for vortec valves (or aftermarket equivalent), spring shims (If required), and detailed instructions for valve spring installation .   Designed for 11/32" valves,  package  works on all GEN 1 SBC applications.  Free Shipping  to lower 48 States.  Outside USA?  LS?  Inquire before ordering.


PACKAGE COST: $329.00 USD


SPRINGS REQUIRE NO MACHINING ON VORTEC (062/906) HEADS WITH UP TO .55  0" NET LIFT

MY SPRING EMPLOYS 7 THINNER DIFFERENT "OVATE COILS"  VS. THE 6 TRADATIONAL "ROUND COILS" USED ON OEM 1.250" (AND MOST AFTERMARKET SPRINGS).  THIS .100" TALLER BUT THINNER COIL BEEHIVE SPRING DESIGN ALLOWS UP TO .550 NET LIFT (WITHOUT ANY HEAD MACHINING ON VORTEC (062/906) CASTINGS) WHILE STILL MEETING OR EXCEEDING OEM COIL BIND AND RETAINER TO VALVE SEAL CLEARANCE SPECIFICATIONS.


THE BEEHIVE DESIGN (SPRING COILS HAVING  DIFFERENT DIAMETERS)  ALSO ELIMINATES "HARMONIC STACKUP" FOUND WITH TRADITIONAL ROUND DESIGN (SAME DIAMETER SPRING COILS)  AND  TTHE REQUIREMENT OF AN INNER DAMPNER SPRING.  THIS EXLCUSION OF THE INNER DAMPNER SPRING, ALLOWS DECREASED LOADS WHILE MAINTAINING VALVETRAIN STABILITY TO 7000RPM+.  SPRING LOADS MATCHED IN HOUSE WITHIN 2% TO CAM CARDS OR CUSTOMER RPM REQUIREMENTS (NO ADDITIONAL COST).


ORIGIN:

Valve springs are  manufactured using super clean chrome silicon (SCCS) in Kobe, Japan (only SCCS alloy source in the world).  I used SCCS to eliminate any micro inclusions and voids often  found in cheaper inferior tool steel spring material. These inclusions and voids after millions of cycles lead to cracks, valve spring coil failure, and often catastrophic engine failure (due to valve dropping and being hit by piston).  My material source  met my spring material specifications, and manafacture beehive valve springs that meet my print specifications incouding the tight load tolerances (2 sigma, +/-5%) across all compresed heights from 2.100" to 1.200".   Once valve springs get to my small shop,  they are colllated within 2% using my custom hand built load fixture with Ashcroft calibrated gauge.  After springs are coiled to my design prints, springs are squared at the top and  bottom coils which provides accurate for location in cylinder head valve spring spring pockets as well as precise retainer fit at the top of the spring.  Once the springs are machined they are subjected to media blasting and then immediately painted or clear coated to prevent the "super clean"raw material from oxidizing. After manufacturing and load testing springs the they are shipped to my race shop for propritary hardening and micro load matching within 2%.


DROP IN PACKAGE SUPPORTS 7000RPM AND UP TO .550" NET LIFT:

Package include (8) load matched intakes springs and (8) load matched (color coated red) exhaust springs with loads to support 7000rpm with standard 1.94/1.50 SBC valves.  My spring package provides valvetrain stability (no valve float) to 7000rpm (or higher if requested) while using significantly less loads than a typlical 1.250" single coil spring with dampner. Please include cam card
